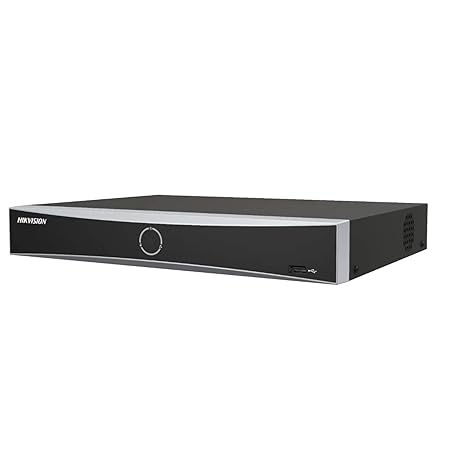

Hikvision

8 Channel

AI by Device : Facial recognition, perimeter protection, motion detection 2.0

AI by Camera :
Facial recognition, perimeter protection, throwing objects from building, motion
detection2.0, ANPR, VCA

Facial Detection and Analytics : Face picture comparison, human face capture, face picture search

Face Picture Library :
Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4
MB, total capacity ≤ 1 GB)

Facial Detection and Analytics

Performance :
1-ch, 8 MP

Face Picture : Comparison 4-ch

By Device :
All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for
human and vehicle recognition to reduce false alarm

By Camera : All channels

By Device :
1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle
recognition to reduce false alarm

By Camera : All channels

IP Video : Input 8-ch
Incoming Bandwidth : 80 Mbps
Outgoing Bandwidth : 80 Mbps
HDMI Output :
1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 ×
1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA Output : 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode : HDMI/VGA independent output

CVBS Output : N/A

Audio Output : 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding Format : H.265/H.265+/H.264+/H.264

Recording Resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback : 8-ch

Decoding Capability :
AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30
fps)
AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30
fps)

Stream Type : Video, Video & Audio

Audio Compression : G.711ulaw/G.711alaw/G.722/G.726/AAC

Remote Connection : 128

API : ONVIF (profile S/G); SDK; ISAPI

Compatible Browser : IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Network Protocol :
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,
UPnP™, HTTP, HTTPS

Network Interface : 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

SATA : 1 SATA interface

Capacity : Up to 10 TB capacity for each HDD

USB Interface : Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Alarm In/Out : N/A

GUI Language :
English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French,
Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish
Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese,
Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian,
Kyrgyz , Brazilian Portuguese, Indonesian

Power Supply : 12 VDC, 1.5 A

Consumption : ≤ 10 W (without HDD)

Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity : 10% to 90%

Dimension (W × D × H) : 320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9")

Weight : ≤ 1 kg (without HDD, 2.2 lb.)

FCC : Part 15 Subpart B, ANSI C63.4-2014

CE : EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Obtained Certification : CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

1 Year Manufacturer

Hikvision

China
